3.1 - GanttChart
Introduction
A generic instance to visualise any kind of scheduling data along a timeline. The model data needed by the class consists of rows with activities, links between activities, and layers to group activities together.
Structure
The instance consists of several children instances:
- InfoColumn: shown on the left-hand side to display a hierarchical structure of rows, and additional data (like here indexes).
- Graphics: shown on the right-hand side to display a graphical representation of the model data.
- Timeline: shown above the graphics element. The timeline itself consists of two child: the Dateline and the Eventline.
- Dateline: displays days, weeks, months, years, etc...
- Eventline: displays various time markers.

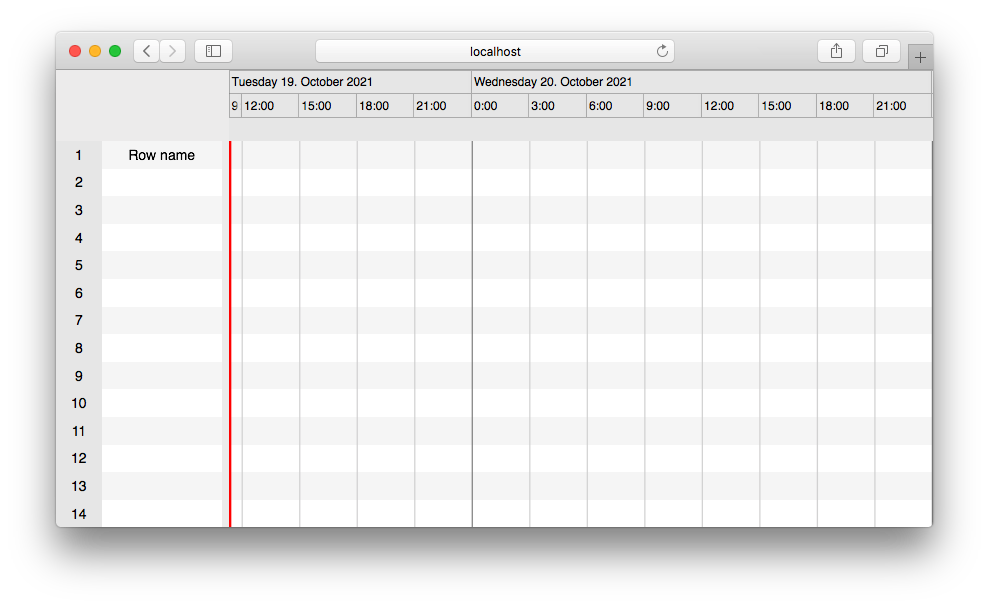

The screenshot below shows the initial appearance of an empty GanttChart.
Model
The GanttChart itself doesn't really have any requirements for a model. It is simply providing convenience methods for the underlying elements (graphics view, dateline, eventline...). The following table lists the relevant methods:
| Method | Description |
|---|---|
gantt.getRows(): Row[] | Gets the rows of the GanttChart. |
gantt.getLayers(): Layer[] | The list of model layers that will be displayed by the graphics. |
gantt.getLinks(): IntervalTree[] | The list of links that will be displayed by the graphics. |
gantt.getCalendars(): Calendar[] | The list of calendars that will be displayed by the graphics. |
Standalone vs. Multiple GanttCharts
A Gantt chart can be used standalone or coupled with other Gantt charts. You can decide to synchronise different properties of the Gantt chart like its Activities, Timeline...
